Nederman : Mobile Filters

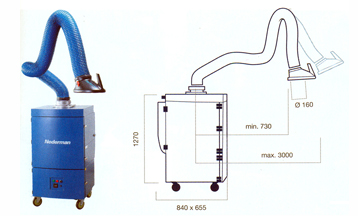

• Easy to move and position.
• Includes 3 m long extraction arm, Original.
• Cleanable filter with high filtration efficiency, easy to exchange.
• Service hour meter.
• Low airflow alarm (time to clean or replace the filter cartridge).
• BGIA certified for welding fume class W3, according to the EN ISO 15012-1 standard.
| Arm length m | Arm ǿ mm | Max airflow m3 / hr | Filtration efficiency % | Filter surface m2 | Voltage, voltage electric plug | Power kW | Frequency Hz | No. of phases | Noise level dB (A) | Weight kg | Part no. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 160 | 500 - 900 | 99 | 12 | 230 / EUR / UK | 1,1 | 50 | 1 | 72 | 175 | 12620151 |
| 3 | 160 | 500-900 | 99 | 12 | 400 / EUR | 1,1 | 50 | 3 | 72 | 175 | 12620251 |

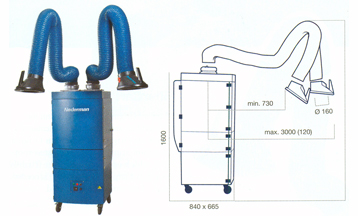

• Easy to move and position.
• Includes two 3 m long extraction arms, Original.
• Two cleanable filters with high filtration efficiency, easy to exchange.
• Service hour meter.
• Low airflow alarm (time to clean or replace the filter cartridge).
| Arm length m | Arm ǿ mm | Max airflow m3 / hr | Filtration efficiency % | Filter surface m2 | Voltage, voltage electric plug | Power kW | Frequency Hz | No. of phases | Noise level dB (A) | Weight kg | Part no. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 160 | 2 x 500 - 900 | 99 | 2 x 12 | 400 / EUR | 2,2 | 50 | 3 | 75 | 245 | 12621151 |

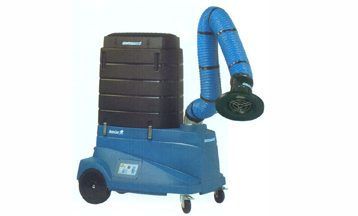

The FilterCart W3 mobile filter unit for extraction applications in light production facilities is very advanced, with every conceivable function. This includes a warning signal when the filter is full. The W3 model meets the legal requirements for W3 in BGIA. The specially designed metal hood with integrated spotlight provides maximum air speed at the weld point.

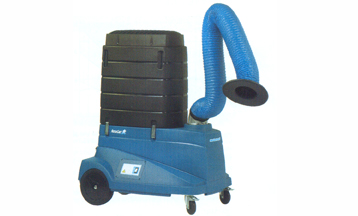

The FilterCart Carbon is a mobile filter unit specially designed for extracting foul smells. The FilterCart Carbon is supplied with the Standard extraction arm and can be fitted with HEPA filters for maximum efficiency. Applications: solvents, vapours and other gaseous contaminants.

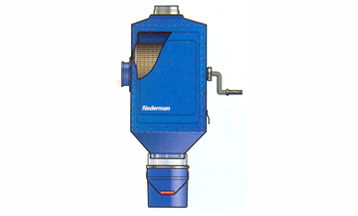

Manual filter cleaning with hand crank. For simple welding and dust applications not requiring automation. N.B. When connected to a fan, a separate starter is needed.
| Filter Cartridge | Weight, kg | Part no. |
|---|---|---|
| PW13 | 65 | 12600163 |
| PW 13 (white) | 65 | 12606263 |

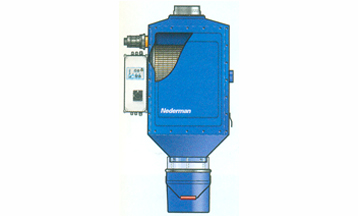

Fully automated mechanical filter cleaning, normally combined with compressed air cleaning. For heavy duty welding applications.
| Filter Cartridge | Filter Cleaning | Voltage, V | Phases* | Weight, kg | Part no. |
|---|---|---|---|---|---|
| No filter | Motor + Compresse air | 400 | 3 | 65 | 12640463 |
| PW 13 | Motor + Compresse air | 400 | 3 | 65 | 12642463 |
Semi-automated filter cleaning with manual start-up. Can be combined with compressed air cleaning. For welding and dust applications.
| Filter Cartridge | Filter Cleaning | Voltage, V | Phases* | Weight, kg | Part no. |
|---|---|---|---|---|---|
| No filter | Motor | 400 | 3 | 65 | 12630463 |
| PW 13 | Motor | 110 | 1 | 65 | 12631063 |
| PW 13 | Motor | 230 | 1 | 65 | 12631163 |
| PW 13 | Motor | 230 | 3 | 65 | 12631363 |
| PW 13 | Motor | 400 | 3 | 65 | 12631463 |
| PW 13 | Motor + Compresse air | 230 | 1 | 65 | 12632163 |
| PW 13 | Motor + Compresse air | 400 | 3 | 65 | 12632463 |
| PWHE 15 | Motor + Compresse air | 400 | 3 | 65 | 12635463 |

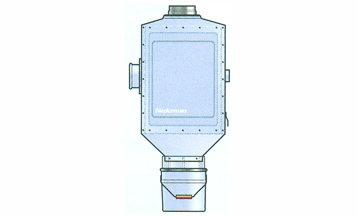

The FilterBox unit is also available in white for applications in the food and chemical industries.
| Filter Cartridge | Filter Cleaning | Voltage, V | Phases* | Weight, kg | Part no. |
|---|---|---|---|---|---|
| PW 13 | Motor | 230 | 3 | 65 | 12630463 |
| PW 13 | Motor | 230 | 3 | 65 | 12631063 |
| PW 13 | Motor | 400 | 3 | 65 | 12631163 |
| PWA HE15 (antistatic) | Motor | 400 | 3 | 65 | 12637463 |
